| Air Flow Capacity | : | 147 cfm |
| Amperage Rating | : | 0.18 A |
| Correct Item Group | : | Exhaust Fans |
| Dimensions | : | 10-9/16 in L x 10 in W x 10-9/16 in H |
| Duct Size | : | 4 in |
| Enclosure Type | : | IP44 |
| Flow Rate | : | 151 cfm |
| Frequency Rating | : | 60 Hz |
| Housing Diameter | : | 10 in |
| Inlet Size | : | 4 in |
| Insulation Class | : | Class B |
| Material | : | Plastic |
| Motor Type | : | AC |
| Outlet Size | : | 4 in |
| Phase | : | 1 ph |
| Power Rating | : | 20 W |
| Pressure Rating | : | 0.53 in-WG |
| Series | : | FR Series |
| Speed Rating | : | 3000 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 120 V |
A centrifugal type exhaust/supply fan specifically designed for moderate size ventilation applications. The fan can be mounted in any angle at any point along the duct work and straight-through air flow design allows easy installation. By using accessory FC type mounting clamps fan can easily be removed from duct work for service. Fans are constructed in accordance with standard dimensions for spiral duct eliminating the need for transition pieces. Fan motors are capable of operating in air stream temperatures up to 140 deg F. Motor bearings are permanently sealed, self lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid state or transformer type control. All FR Series fans are backed by Fantech's Five Year Warranty.

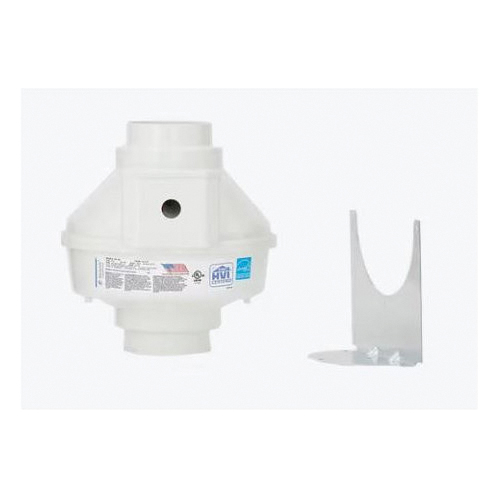

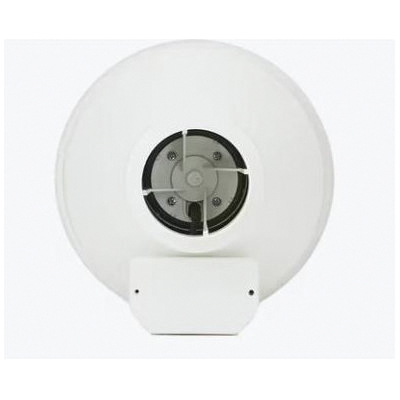

fantech® In-Line Duct Fan, FR Series, 0.18 A, 120 V, 60 Hz, 1 ph, 20 W, 3000 rpm, 151 cfm Flow Rate, 4 in Duct, 10 in Housing Diameter, 4 in Inlet, 4 in Outlet, AC Motor, 147 cfm Air Flow Capacity, IP44 Enclosure, 0.53 in-WG, Insulation Class: Class B, 140 deg F, Plastic, 10-9/16 in L x 10 in W x 10-9/16 in H
- Durable, leak-free, low-noise operation
- Corrosion and heat-resistant housing
- Indoor/outdoor use
- Built-in thermal overload protection with automatic reset
- Operable in air stream temperatures up to 140 deg F
- Mounting bracket and hardware included
- Low airflow resin fans for various applications
- FR is not a Radon Mitigation Fan
- Designed for multi-purpose use in small to medium supply and exhaust ventilation systems in residential and commercial buildings
- These fans feature a durable, leak-free design, operate quietly, and provide long-lasting performance and minimal maintenance
- Mounting brackets and hardware are included for straightforward installation, streamlining the setup process for contractors
- Choose from a variety of duct accessories to make installation straightforward and time-efficient: fast clamps, filter boxes, silencers, shut-off dampers, and grilles
