| Additional Information | : | 3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, R-410A Refrigerant Type |
| Amperage Rating | : | 5.4 A Cooling, 9 A Heating |
| BTU Rating | : | 9000 Btu/hr Cooling, 11000 Btu/hr Heating |
| CFM Rating | : | 296 to 364 cfm Cooling, 328 to 396 cfm Heating |
| Connection Type | : | Flared |
| Correct Item Group | : | Wall Mounted Indoor Units |
| Drive Type | : | Inverter |
| EER Rating | : | 13 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HSPF Rating | : | 8.3 |
| Material | : | HIPS |
| Mounting Type | : | Wall |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 11-3/4 in |
| Overall Length | : | 8-7/16 in |
| Overall Width | : | 32-5/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 1.15 kW Cooling, 2.05 kW Heating |
| SEER Rating | : | 20 |
| Sound Level | : | 37 dBA |
| Temperature Rating | : | 61 to 90 deg F Cooling, 50 to 86 deg F Heating |
| Voltage Rating | : | 208 to 230 V |
Samsung's exclusive WindFree™* cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.

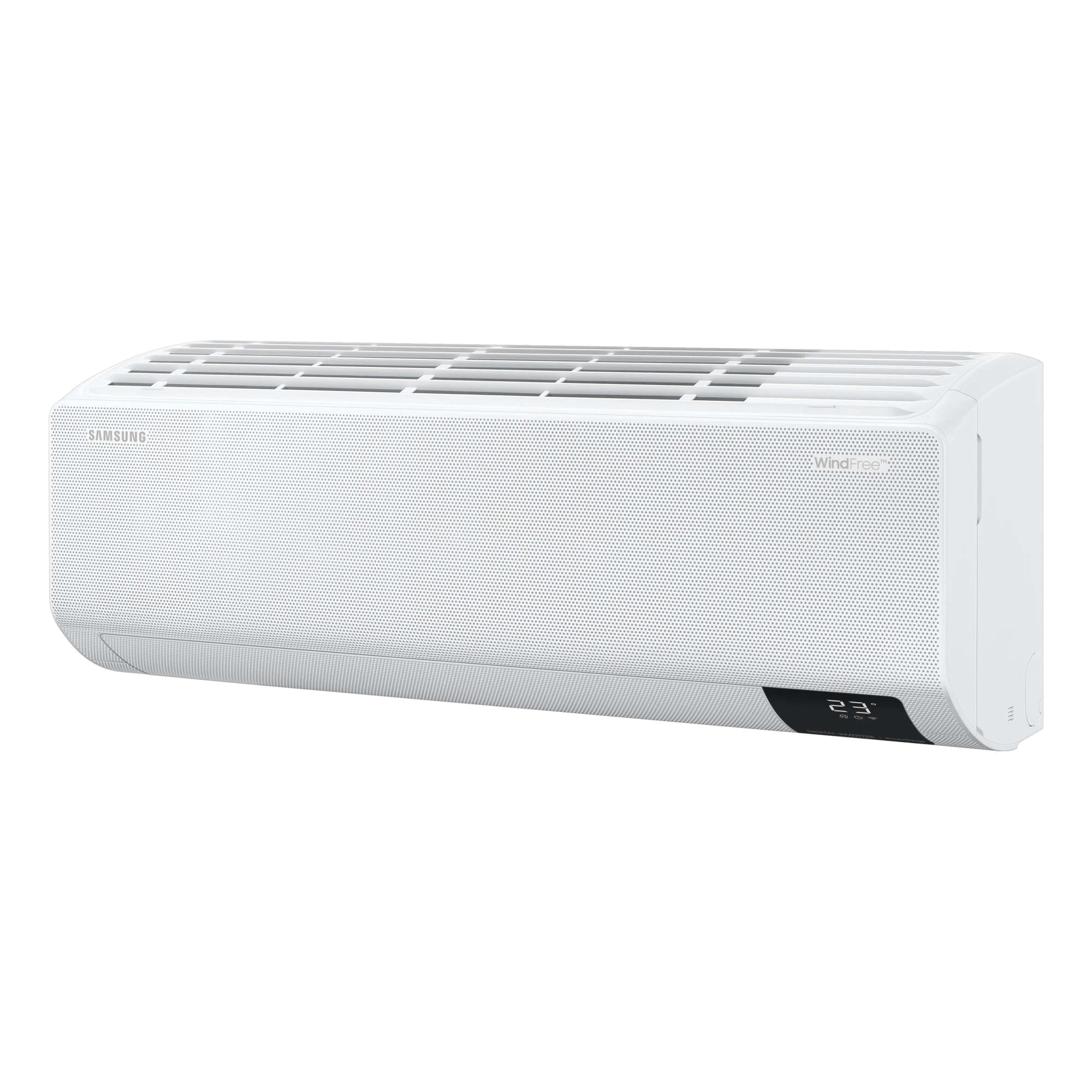

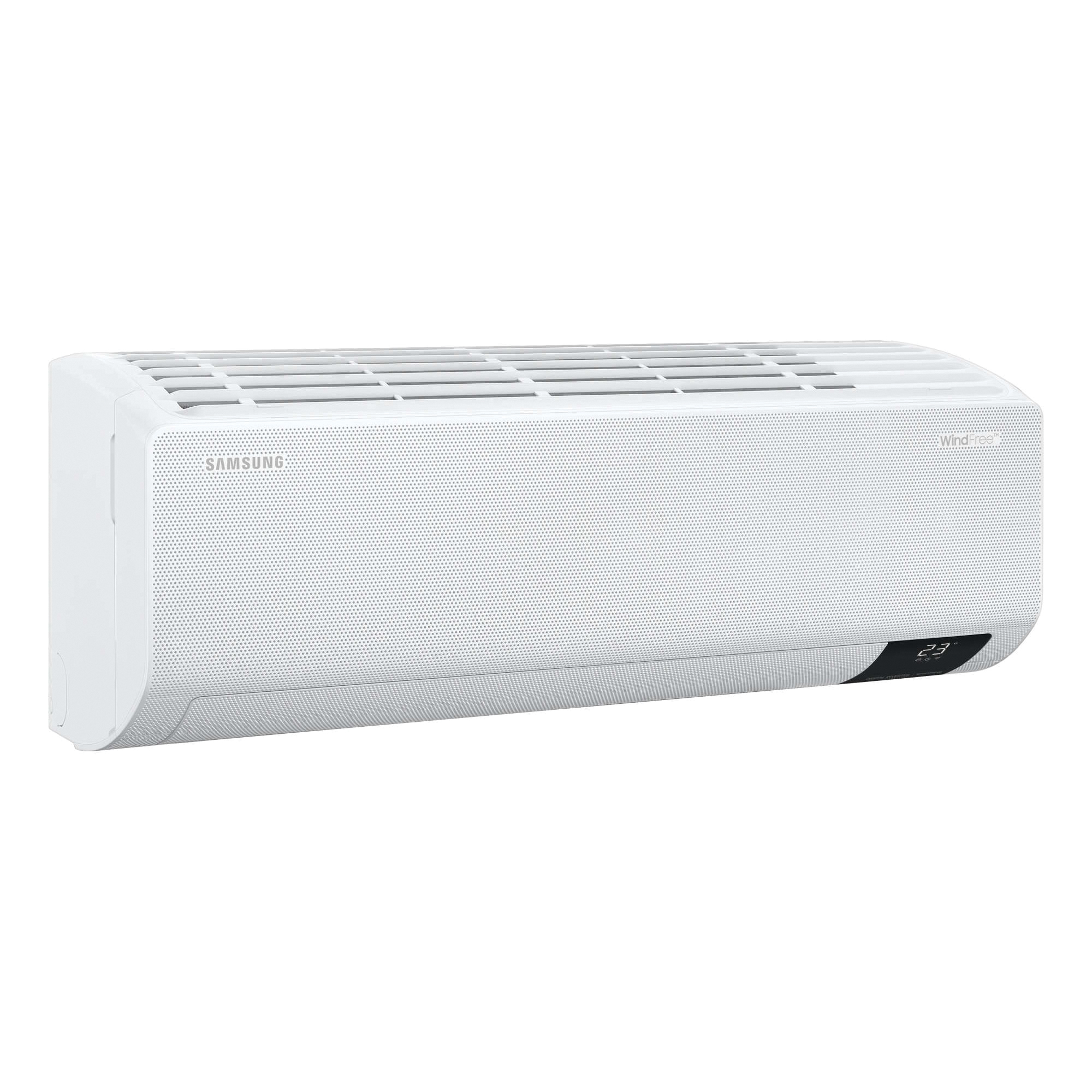

Samsung Evaporator Split System Indoor Unit, 208 to 230 V, 5.4 A Cooling, 9 A Heating, 1.15 kW Cooling, 2.05 kW Heating, 60 Hz, 1 ph, 3 Fan Speeds, 9000 Btu/hr Cooling, 11000 Btu/hr Heating, 296 to 364 cfm Cooling, 328 to 396 cfm Heating, 13 EER Rating, 20 SEER, 8.3 HSPF, Connection Type: Flared, 20 A Fuse Rating, Inverter Drive, 37 dBA Sound Level, Wall Mounting, HIPS, 61 to 90 deg F Cooling, 50 to 86 deg F Heating, 8-7/16 in Overall Length, 32-5/16 in Overall Width, 11-3/4 in Overall Height, Additional Information: 3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, R-410A Refrigerant Type
- The indoor unit shall feature WindFree™ mode. In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants
- The indoor unit shall have Wi-Fi capability as standard
- Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket
- The indoor unit shall have easy-access to wire, pipe, and drain connections via access panel on the bottom of the unit for simple installation and service
- The heat exchangers shall be mechanically bonded fin to copper tube
- The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary
- Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
- The indoor fan shall be a single, antibacterial cross-flow type
- Three fan speed settings and auto settings
- Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers
- The system shall have a built in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS)
- Dual set temperature support when connected to MWR-WG00UN Advanced Wired Controller
- The indoor unit shall have a simple connection for overflow detection devices or any other normally closed contact for simple unit shutdown
- The indoor unit shall ship with a wireless controller, holder, and batteries
- Wired controller options available
- Samsung central control compatible (MIM-R10UN accessory required)
- Interconnect control wire between outdoor and indoor units shall be 16AWG X 2
- System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller
- AI (artificial intelligence) Auto Mode technology monitors factors such as indoor temperature, outdoor temperature, set temperature, and operating time to learn the patterns within your home to automatically adjust system operation to maximize occupant comfort and efficiency (Wi-Fi connection required)
- Eco Mode to reduce energy consumption during low demand operation
