| BTU Rating | : | 32000 Btu/hr |
| CFM Rating | : | 1200 cfm |
| Coil Type | : | Cased |
| Configuration | : | Downflow, Horizontal Left, Horizontal Right, Upflow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Dimensions | : | 20 in H x 14-1/2 in W x 21 in D |
| Material | : | Aluminum |
| Nominal Capacity | : | 36000 Btu/hr |
| Pressure Rating | : | 150 psi |
| Refrigerant Type | : | R-410A |
| Series | : | BMAC Series |
| Tonnage | : | 3 ton |

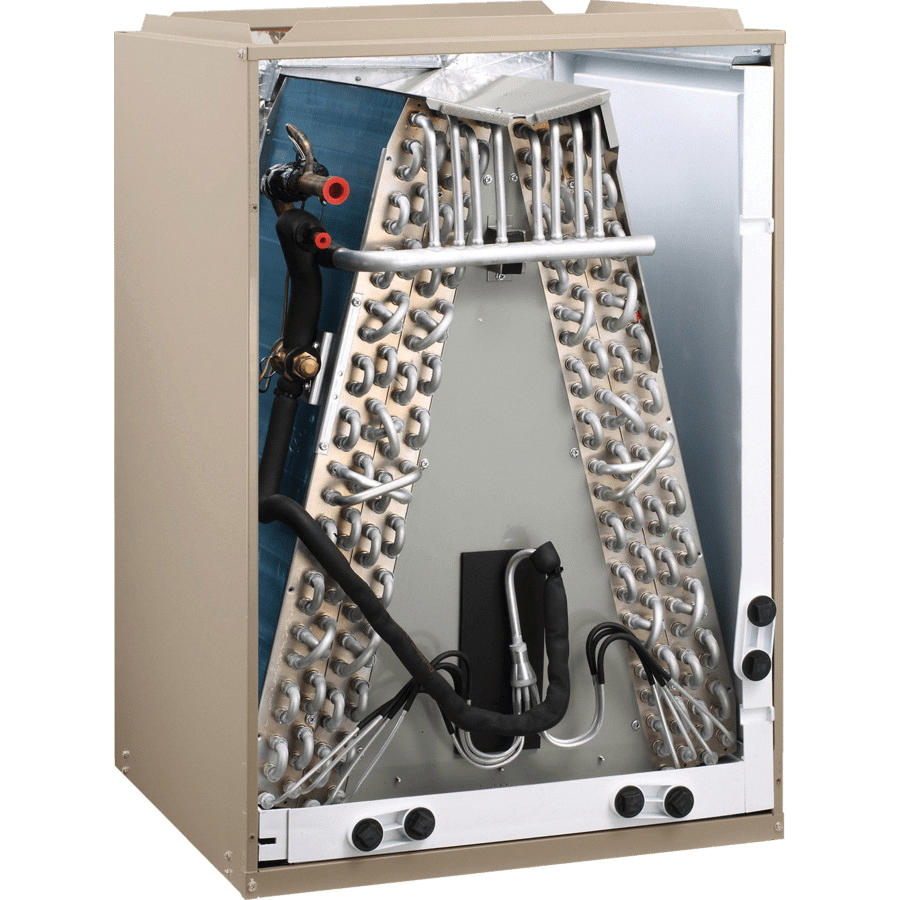

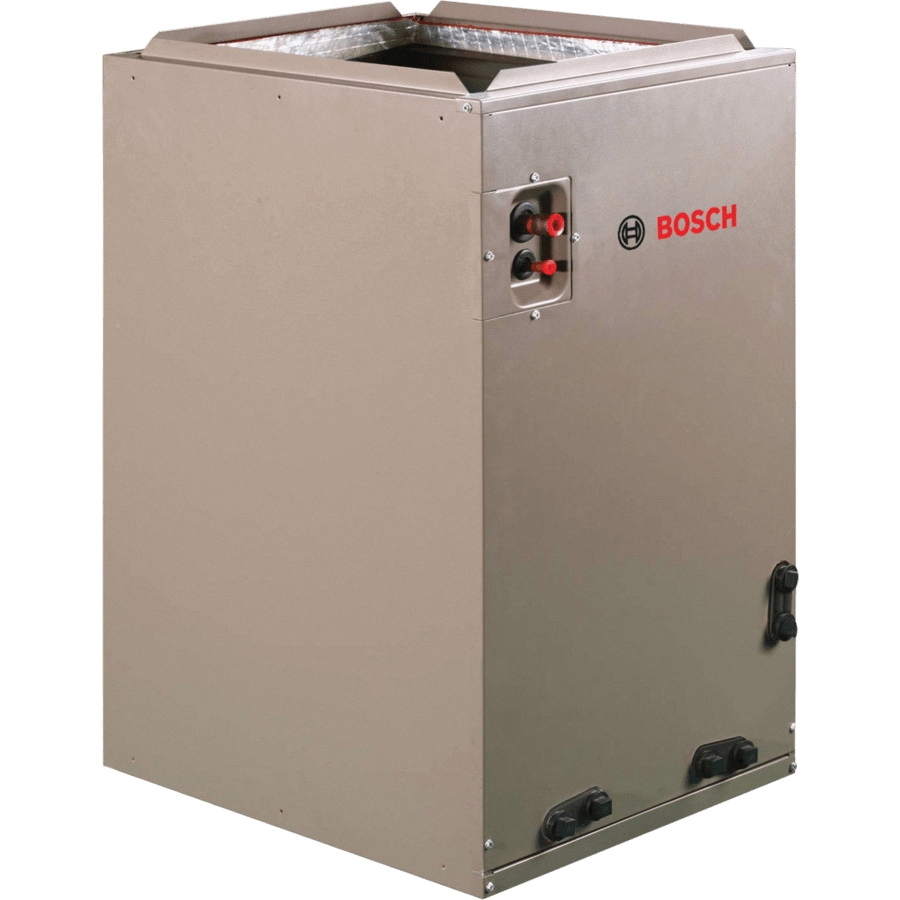

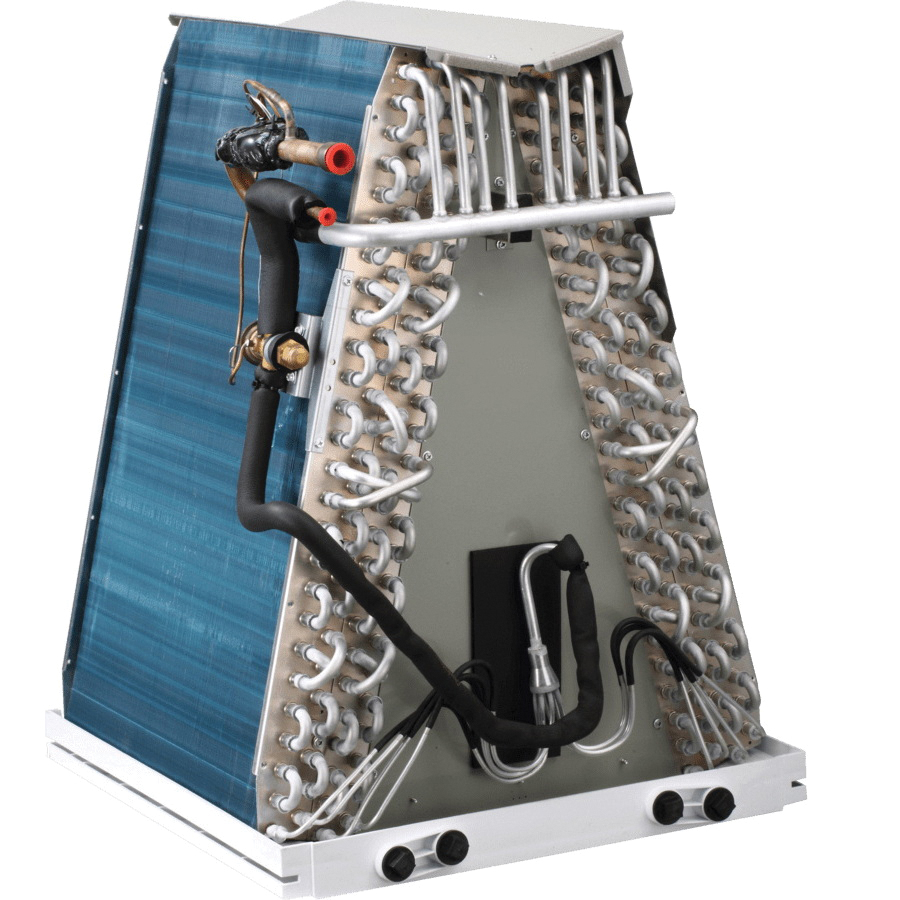

BOSCH Multi-Position Coil, BMAC Series, 36000 Btu/hr Nominal Capacity, 32000 Btu/hr, Downflow, Horizontal Left, Horizontal Right, Upflow, 1200 cfm, Tonnage: 3 ton, R-410A Refrigerant, Cased Coil, 3/4 in Connection, FNPT Connection, 150 psi, Aluminum, 20 in H x 14-1/2 in W x 21 in D
- Air source heat pump and geothermal accessory from Bosch
- Complete product range from 2 to 5 ton
- All Aluminum coils for superior corrosion resistance
- Multi-position drain pan to meet most application needs
- Bosch Cased Coil and Uncased Coil units (BMAC) deliver unmatched performance and efficiency levels
- Bosch offers a complete range of evaporator coils, from 2-5 tons, to fit your needs and deliver maximum comfort to homeowners
- This unit is designed to pair easily with Bosch ASHP Condensing Section (BOVA2.0), Bosch 96% AFUE Furnace (BGH96) or Bosch WSHP Condensing Section (SM Split)
- Built for simple installation across a number of applications (HZ or VT), the Bosch Cased Coil and Uncased Coils will provide comfort and peace of mind
