| Bore Diameter | : | 5/8 in |
| Bore Type | : | Threaded |
| Material | : | Iron |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 3.35 in |
| Pitch Diameter | : | 2.7 to 1.9 in |

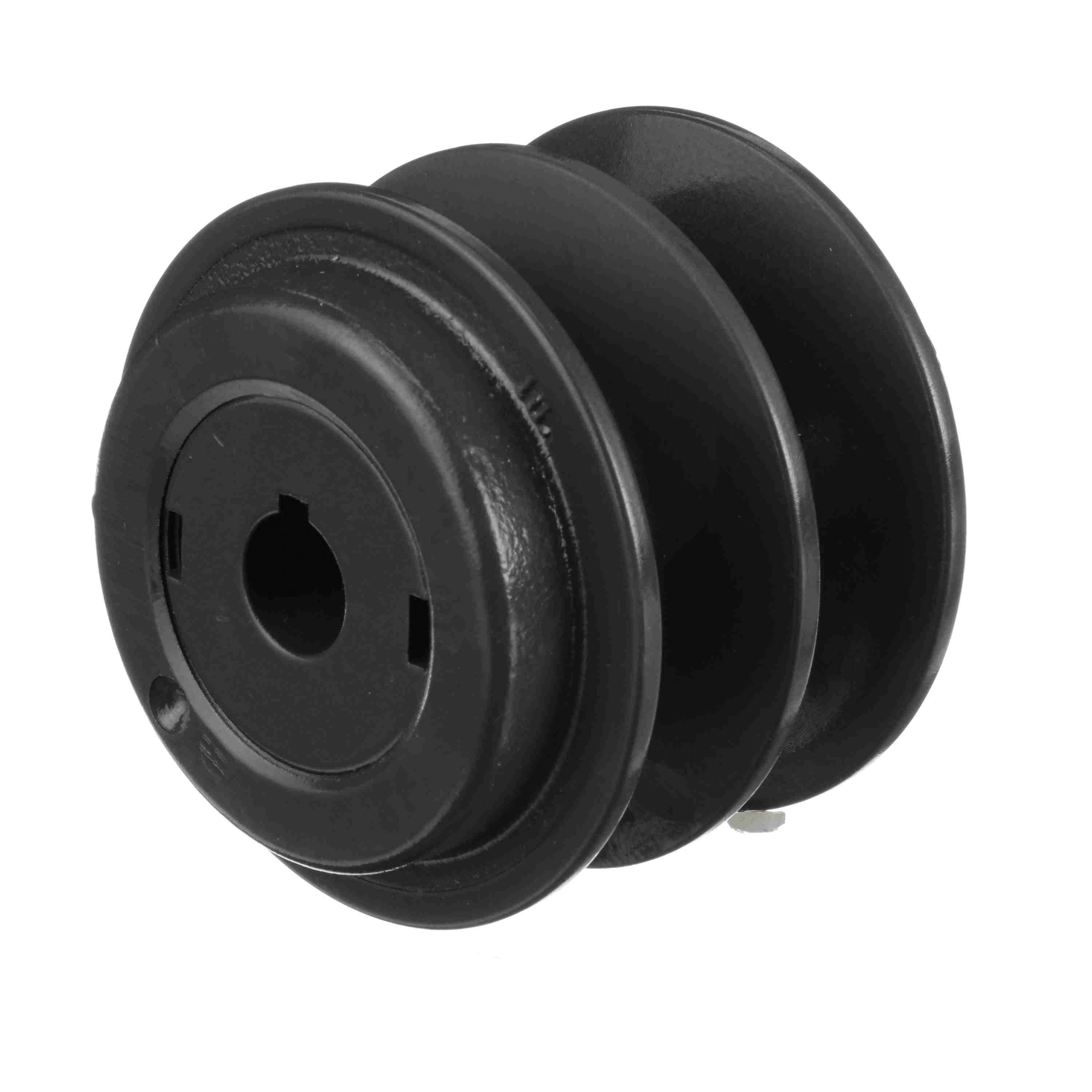

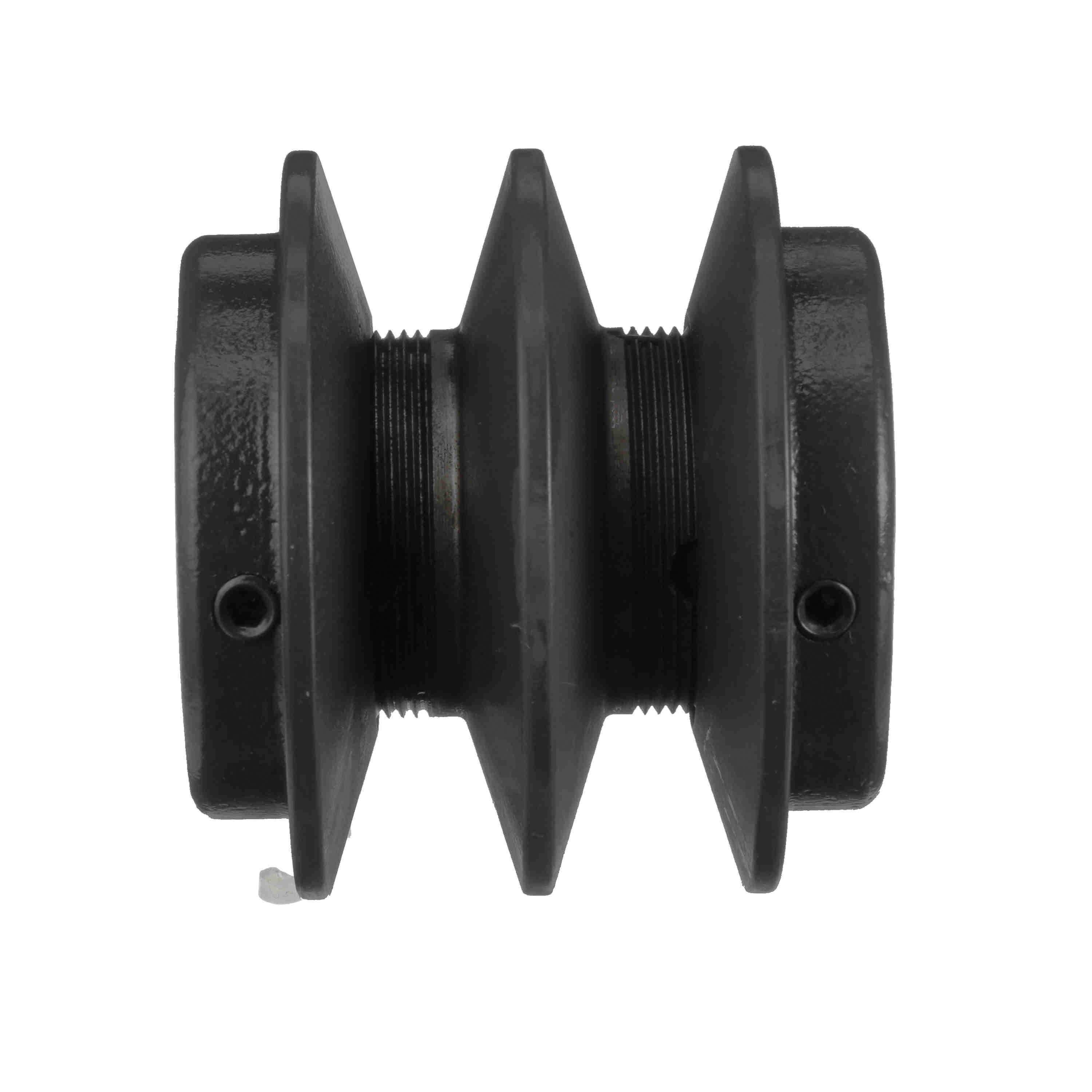

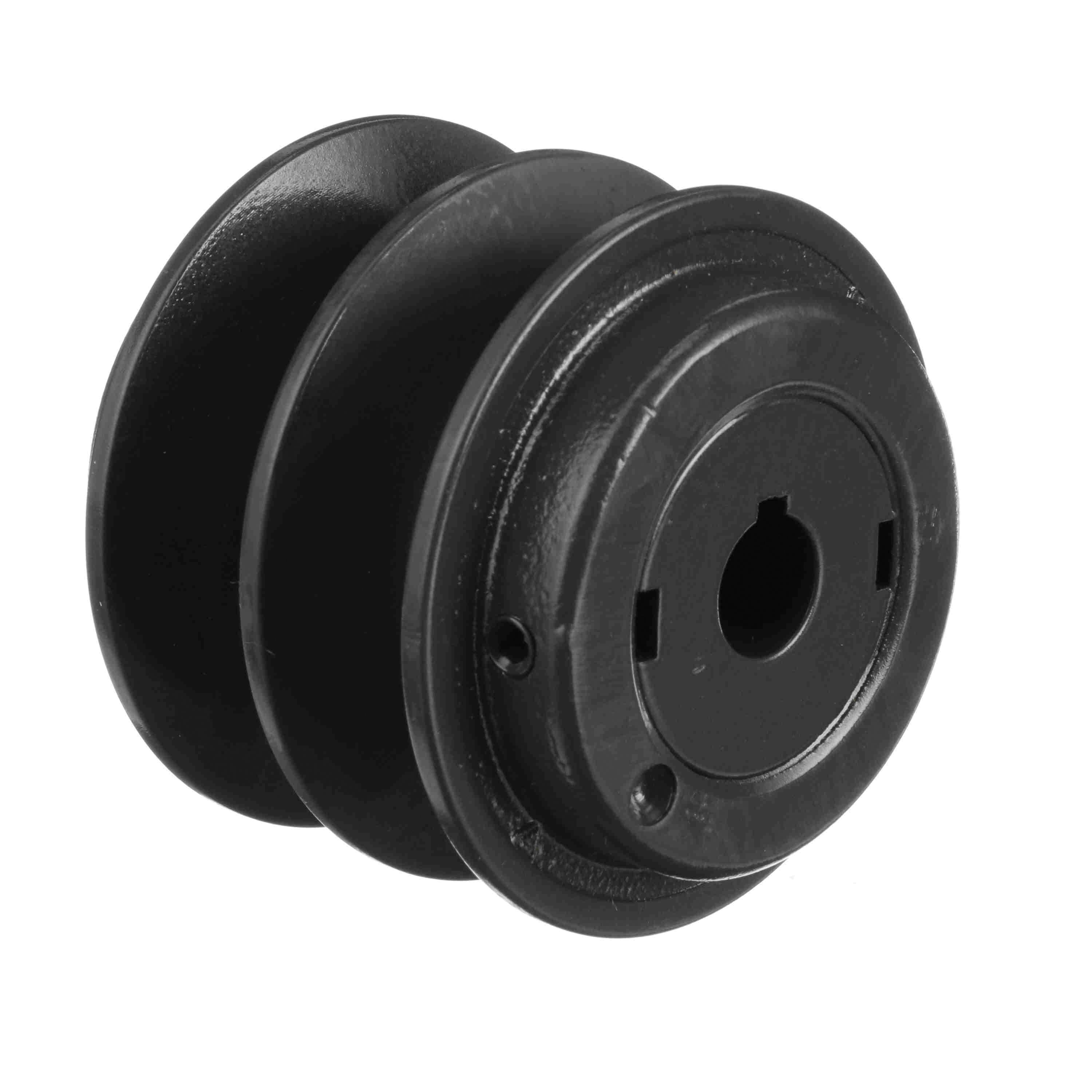

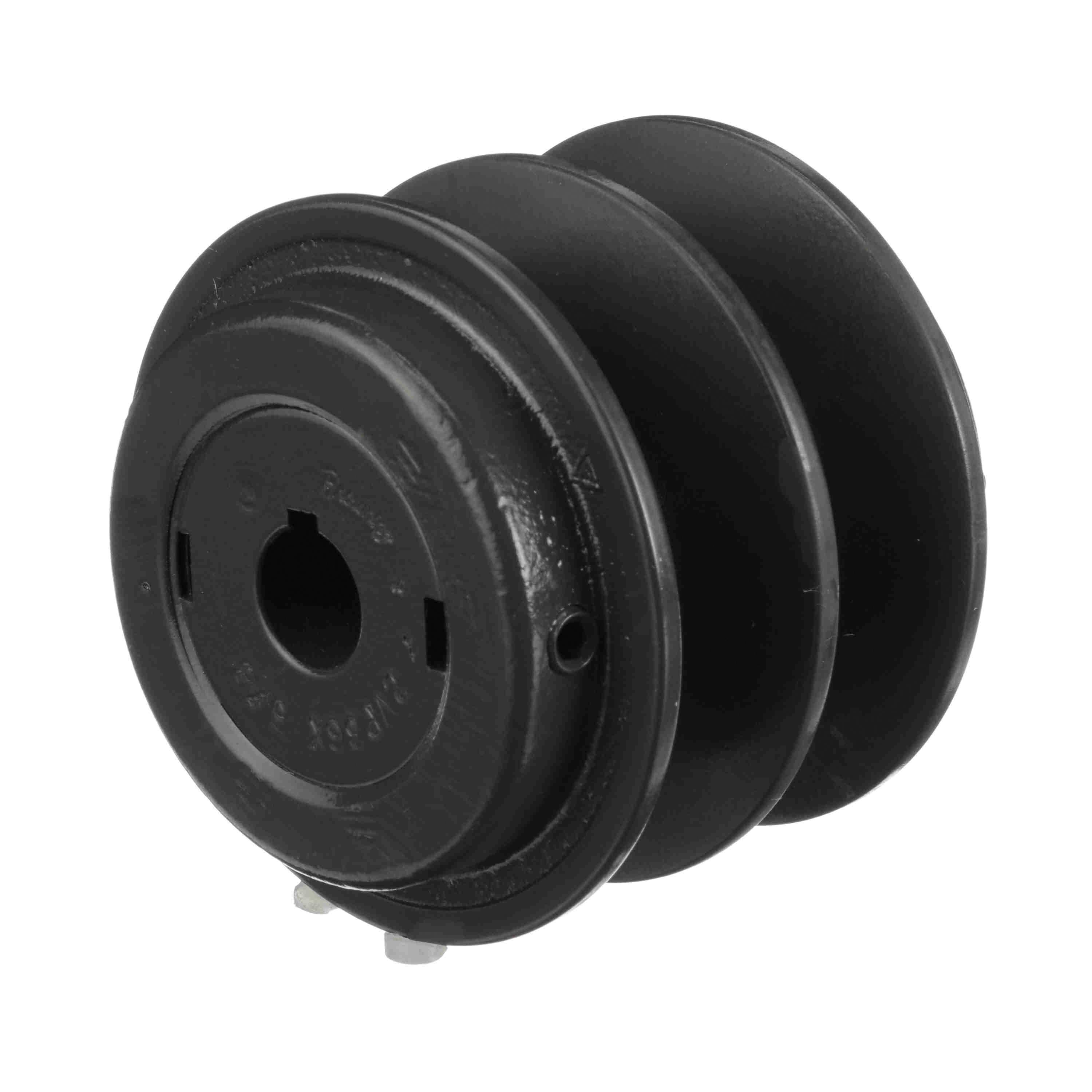

Browning® FHP Variable Pitch Sheave, Threaded Bore, 5/8 in Bore Diameter, 3.35 in Outside Diameter, 2.7 to 1.9 in Pitch Diameter, 2 Grooves, Iron
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
