| Connection Size 1 | : | 1-3/8 in |
| Connection Type 1 | : | Press |
| Connection Type | : | Press |
| Dimensions | : | 1.77 in L x 1.75 in W |
| Fitting Type | : | Cap |
| For Use With | : | Type ACR, Type L, Type K Hard and Soft Copper Tubes |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 250 deg F |
Streamline® is the best known, most trusted name in the industry-with a nearly 100-year history of providing the best-in-class products you need to work more e ciently and productively. The ACR Press System is the latest example of the industry-leading innovation and commitment to customer needs that make Streamline® the standard for excellence.

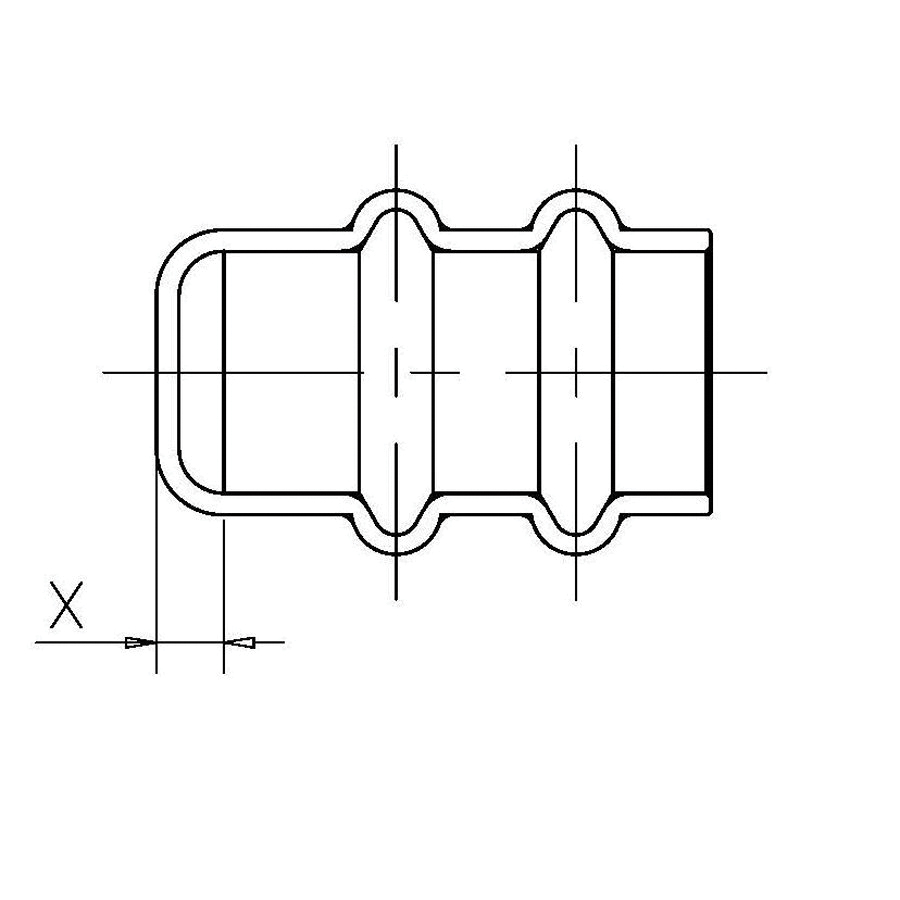

Streamline® Cap, 1-3/8 in Connection, Press, Material Construction: Copper, For Use With: Type ACR, Type L, Type K Hard and Soft Copper Tubes, 1.77 in L x 1.75 in W, 700 psi, -40 to 250 deg F
- Approved for use with Type ACR, L, K hard and soft copper tube
- Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
- DualSeal™ Ring Design provides superior sealing and joint strength with 200% more surface contact
- TrapZone™ Leak Barrier innovative vacuum-zone further ensures leak protection
- Force360™ Press Contour provides more uniform joint compression and sealing performance
- Tri-Lock™ Press Profile creates superior joint strength and pressure handling capabilities
- Compatible with R410A and other commonly used refrigerant gases and oils
- Propietary Streamline® ACR Press Jaws available from Milwaukee® Tool
- Compatible with leading full-size press tools on the market
- Includes a 10-year limited warranty against defects in material and workmanship
