| Connection Size 1 | : | 7/8 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Dimension Standards | : | ASME B16.22, ASME B16.51, ASME B31.5 |
| Dimensions | : | 2.89 in L x 1.26 in W x 1.26 in H |
| Fitting Type | : | Coupling |
| For Use With | : | Milwaukee® Streamline® ACR Press Jaws |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 250 deg F |
Streamline® ACR Copper Press Fittings for use in HVAC and VRF applications. Available sizes ranging from 1/4” to 1-3/8” in outside diameter. Product is designed to join ASTM B280 and ASTM B88 hard-drawn copper tube (Types ACR, K, L) from 1/4" to 1-3/8" as well as ASTM B280 and ASTM B1003 soft (annealed) copper tube up to 7/8”. Streamline® ACR Press Fittings are compatible with the Milwaukee® Streamline® ACR Press Jaws made for both compact and full-sized press tools.

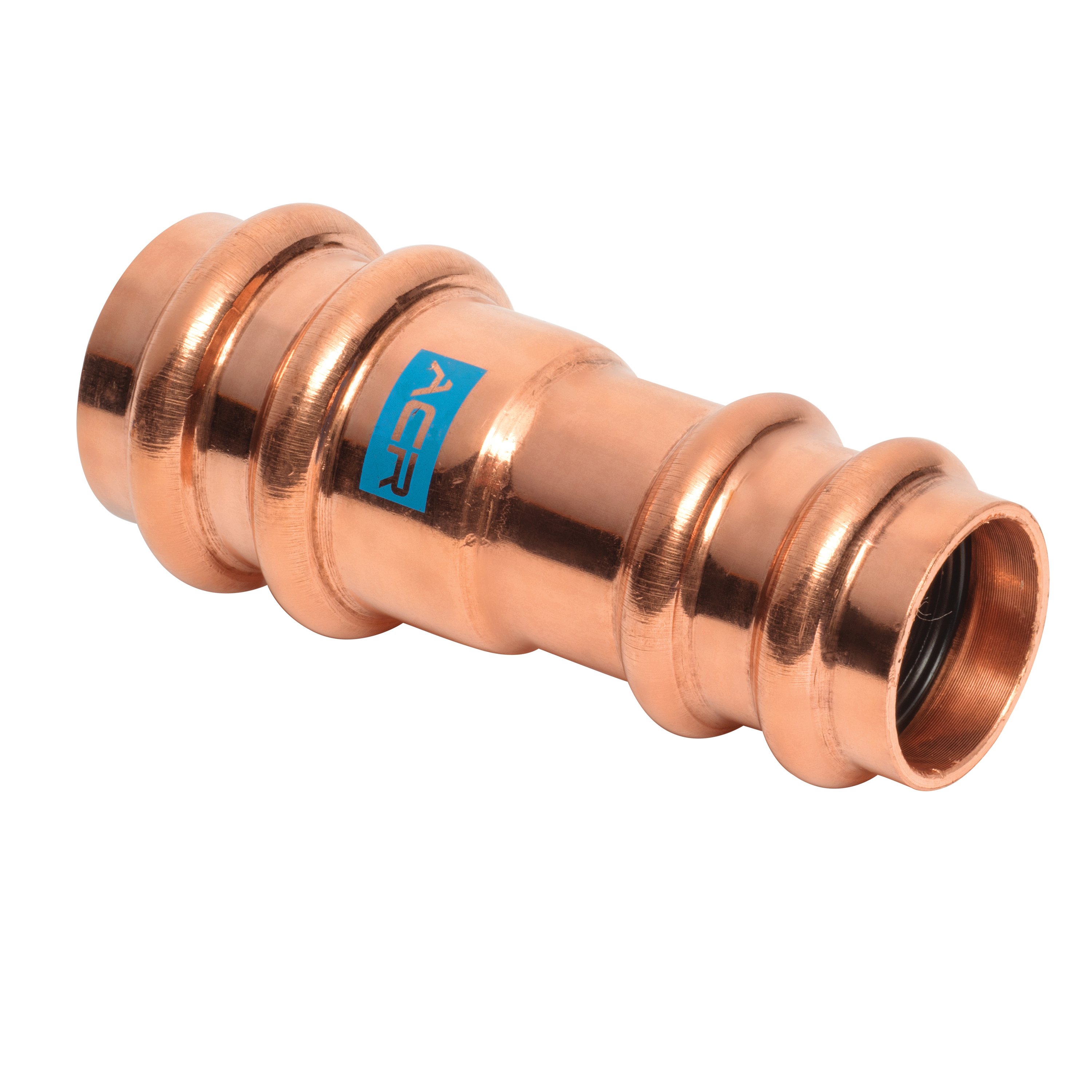

Streamline® ACR Press System Reducer Coupling, Coupling Fitting, 7/8 in Connection Size 1, Connection Type 1: Press, 1/2 in Connection Size 2, Connection Type 2: Press, Press|Press Connection, Copper, Material Construction: Copper, For Use With: Milwaukee® Streamline® ACR Press Jaws, Dimension Standards: ASME B16.22, ASME B16.51, ASME B31.5, 2.89 in L x 1.26 in W x 1.26 in H, 700 psi, -40 to 250 deg F
- Approved for use with Type ACR, L, K hard and soft copper tube
- Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
- DualSeal™ Ring Design provides superior sealing and joint strength with 200% more surface contact
- TrapZone™ Leak Barrier innovative vacuum-zone further ensures leak protection
- Force360™ Press Contour provides more uniform joint compression and sealing performance
- Tri-Lock™ Press Profile creates superior joint strength and pressure handling capabilities
- Compatible with R410A and other commonly used refrigerant gases and oils
- Propietary Streamline® ACR Press Jaws available from Milwaukee® Tool
- Compatible with leading full-size press tools on the market
- Includes a 10-year limited warranty against defects in material and workmanship.
