| Connection Size 1 | : | 1-3/8 in |
| Connection Size 2 | : | 1-3/8 in |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Press |
| Connection Type | : | Fitting|Press |
| Dimension Standards | : | ASME B16.22, ASME B16.51, ASME B31.5 |
| Dimensions | : | 3.91 in L x 1.75 in W x 4.18 in H |
| Fitting Type | : | 90 deg Street Elbow |
| For Use With | : | Milwaukee® Streamline® ACR Press Jaws |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 250 deg F |

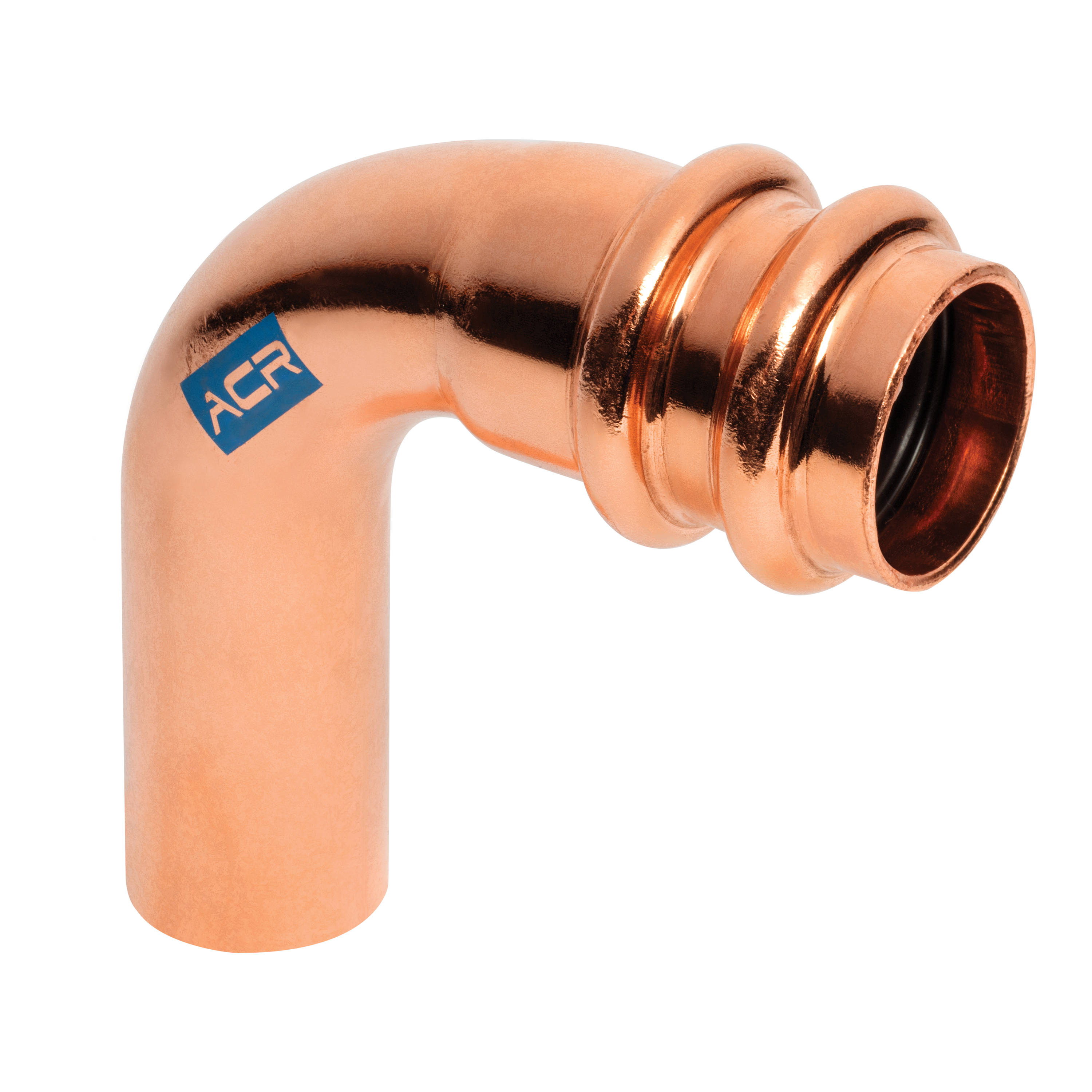

Streamline® ACR Press System Street Elbow, 90 deg Street Elbow Fitting, 1-3/8 in Connection Size 1, Connection Type 1: Fitting, 1-3/8 in Connection Size 2, Connection Type 2: Press, Fitting|Press Connection, Copper, Material Construction: Copper, For Use With: Milwaukee® Streamline® ACR Press Jaws, Dimension Standards: ASME B16.22, ASME B16.51, ASME B31.5, 3.91 in L x 1.75 in W x 4.18 in H, 700 psi, -40 to 250 deg F
- Approved for use with Type ACR, L, K hard and soft copper tube
- Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
- DualSeal™ Ring Design provides superior sealing and joint strength with 200% more surface contact
- Force360™ Press Contour provides more uniform joint compression and sealing performance
- Tri-Lock™ Press Profile creates superior joint strength and pressure handling capabilities
- Compatible with R410A and other commonly used refrigerant gases and oils
- Propietary Streamline® ACR Press Jaws available from Milwaukee® Tool
- Compatible with leading full-size press tools on the market
- Includes a 10-year limited warranty against defects in material and workmanship
