| Amperage Rating | : | 10 A at 120 V, 5 A at 240 V Full Load (Terminal 1 - 3), 25 A at 120/240/277 V Resistive (Terminal 1 - 3) |
| Pilot Duty Rating | : | 125 V-A at 120/240/277 V |
| Switching Action | : | Close on Rise |
| Temperature Rating | : | 210 deg F Open, 250 deg F Close |
| Voltage Rating | : | 120/240/277 V |

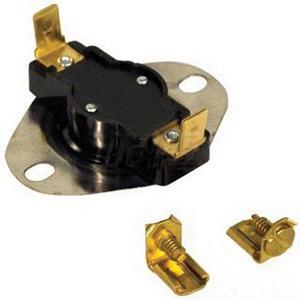

Mars® Fan Switch, 120/240/277 V, 10 A at 120 V, 5 A at 240 V Full Load (Terminal 1 - 3), 25 A at 120/240/277 V Resistive (Terminal 1 - 3), Switching Action: Close on Rise, 210 deg F Open, 250 deg F Close, Pilot Duty: 125 V-A at 120/240/277 V
- MARS Series 390 thermostats are designed for quick on-the job replacements, one thermostat, when used in conjunction with only one listed, can solve almost any mounting problems you encounter, our thermostats have been carefully selected to cover the widest temperature ranges with the fewest models
- Each 3/4 in thermostat has an integral oval flange to match the most commonly used mounting option
- Widest range of replacements in the industry
