| Amperage Rating | : | 10 A at 120 V/5 A at 240 V Full Load (Terminal 1 to 3)/25 A at 120/240/277 V Resistive (Terminal 1 to 3) |
| Pilot Duty Rating | : | 125 VA |
| Series | : | 390 |
| Temperature Rating | : | 155 deg F Open, 175 deg F Close |
| Voltage Rating | : | 120/240/277 V |
Mars® series 390 thermostats are designed for quick on-the-job replacements. One thermostat, when used in conjunction with only one listed, can solve almost any mounting problems you encounter. Our thermostats have been carefully selected to cover the widest temperature ranges with the fewest models.

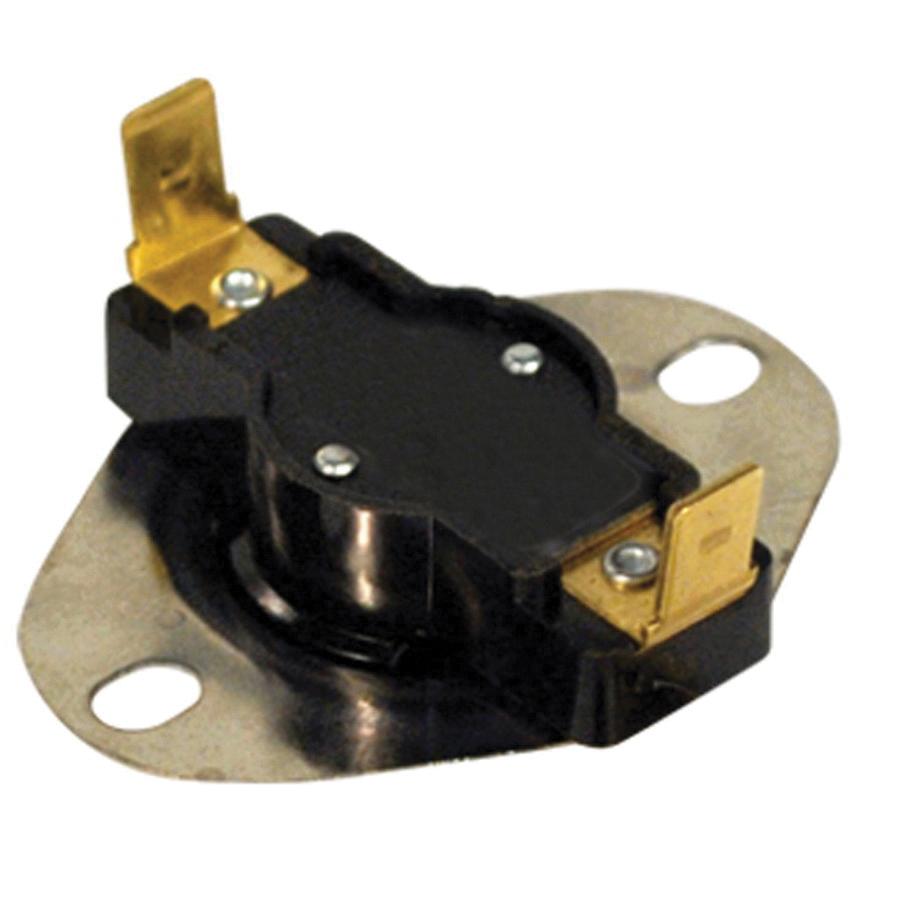

Mars® Fan Switch, Series: 390, 120/240/277 V, 10 A at 120 V/5 A at 240 V Full Load (Terminal 1 to 3)/25 A at 120/240/277 V Resistive (Terminal 1 to 3), 155 deg F Open, 175 deg F Close, 125 VA Pilot Duty Rating
- Close on temperature rise
- F175-2 klixon code
- Each 3/4 in thermostat has an integral oval flange to match the most commonly used mounting option
- Widest range of replacements in the industry
