| Additional Information | : | Cased Enclosure Type, 7/8 in Suction Line Size, 3/8 in Liquid Line Size, TXV Metering Device |
| Coil Type | : | Aluminum Fin |
| Configuration | : | Multi-Position |
| Dimensions | : | 25-5/8 in H x 17-1/2 in W x 20-1/2 in D |
| Material | : | Aluminum |
| Nominal Capacity | : | 2.5 ton |
| Number of Rows | : | 2 |
| Refrigerant Type | : | R-454B |
| Series | : | CTM Series |
| Slab Size | : | 20 in H x 18 in W |

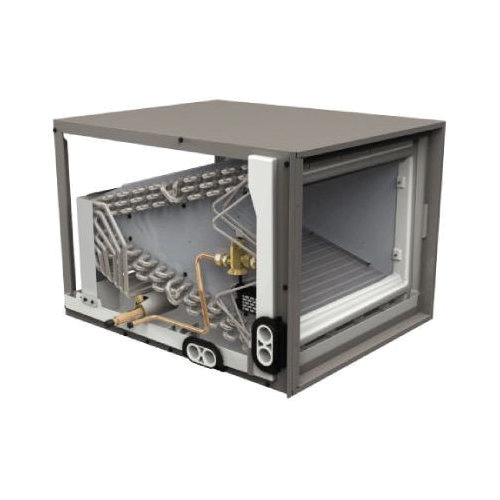

Luxaire® Cased, Multi-position (CTM) Aluminum Indoor Coils have the added flexibility of multi-position installation. These units feature a new, "A" coil design and are designed to work with new low-GWP (R-454B) refrigerant. The MaxAlloy™ Tube-In-Fin aluminum indoor coils are specially engineered to handle demanding air conditioner and heat pump duty. Combined with staggered tube rows that provide proper moisture removal, this smart design provides reliable, efficient performance. Factory-installed TXV or EEV for Variable Capacity systems for easier installations.
Luxaire® Evaporator Coil, CTM Series, 2.5 ton Nominal Capacity, Multi-Position Configuration, 20 in H x 18 in W Slab Size, R-454B Refrigerant Type, Aluminum Fin Coil Type, 2 Number of Rows, Aluminum, 25-5/8 in H x 17-1/2 in W x 20-1/2 in D Dimensions, Cased Enclosure Type, 7/8 in Suction Line Size, 3/8 in Liquid Line Size, TXV Metering Device Additional Information
- Long-life MaxAlloy™ aluminum Tube-In-Fin coil provides lasting reliability
- Provides proper moisture removal with staggered tube rows
- Handles demanding AC or heat pump duty
- Streamlined "A" coil design for maximum efficiency and performance
- Factory-installed TXV (or EEV for Variable Capacity systems), and straight pipe line sets for easy and fast installations every time!
- Delivers optimized efficiency when partnered with matching Luxaire® furnaces
