| Amperage Rating | : | 60 A |
| Color | : | Gray |
| Dimensions | : | 9 in L x 5-1/2 in W x 2 in H |
| Finish | : | Galvanized |
| Material | : | Steel |
| Phase | : | 1 ph |
| Voltage Rating | : | 120/240 V |
| Wire Size | : | 14 to 3 AWG |

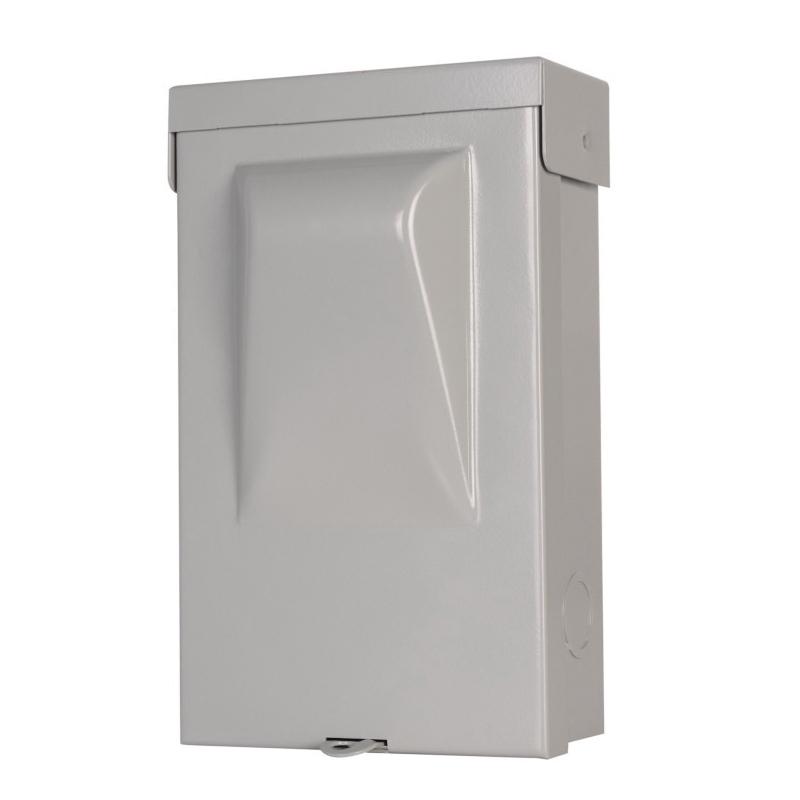

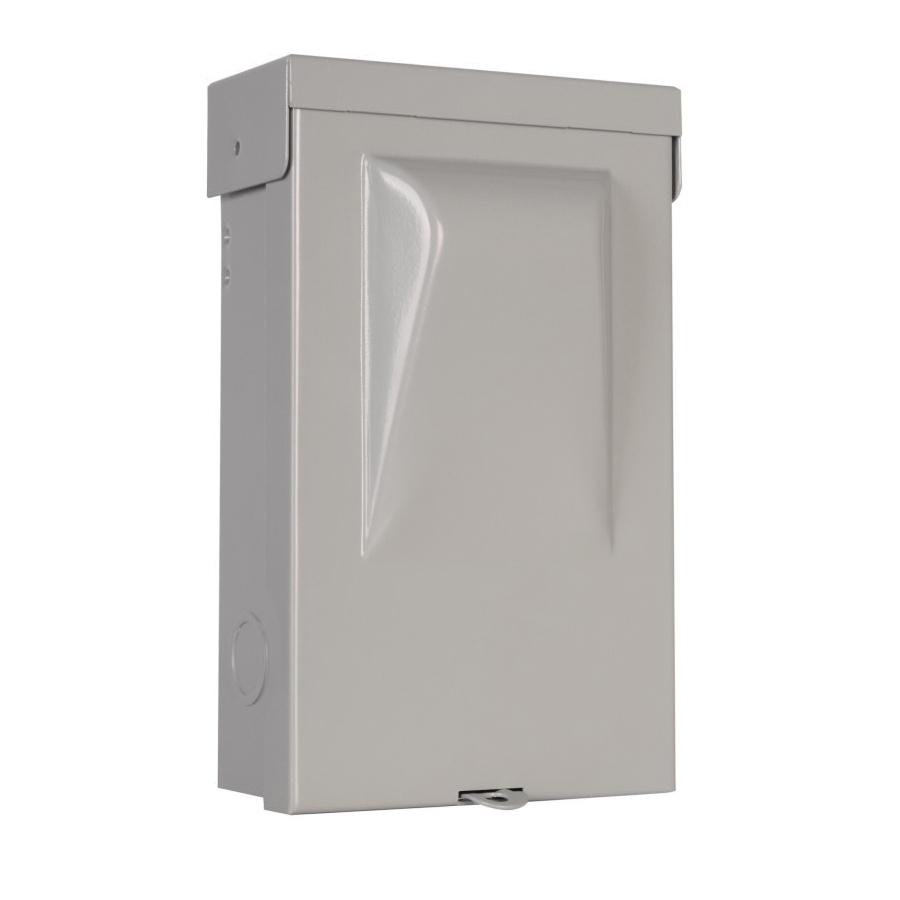

EATON Air Conditioning Disconnect Switch, 120/240 V, 60 A, 1 ph, 14 to 3 AWG Wire, Steel, Gray, Galvanized, 9 in L x 5-1/2 in W x 2 in H
- NEMA 3R outdoor enclosures offered in metallic and non-metallic versions

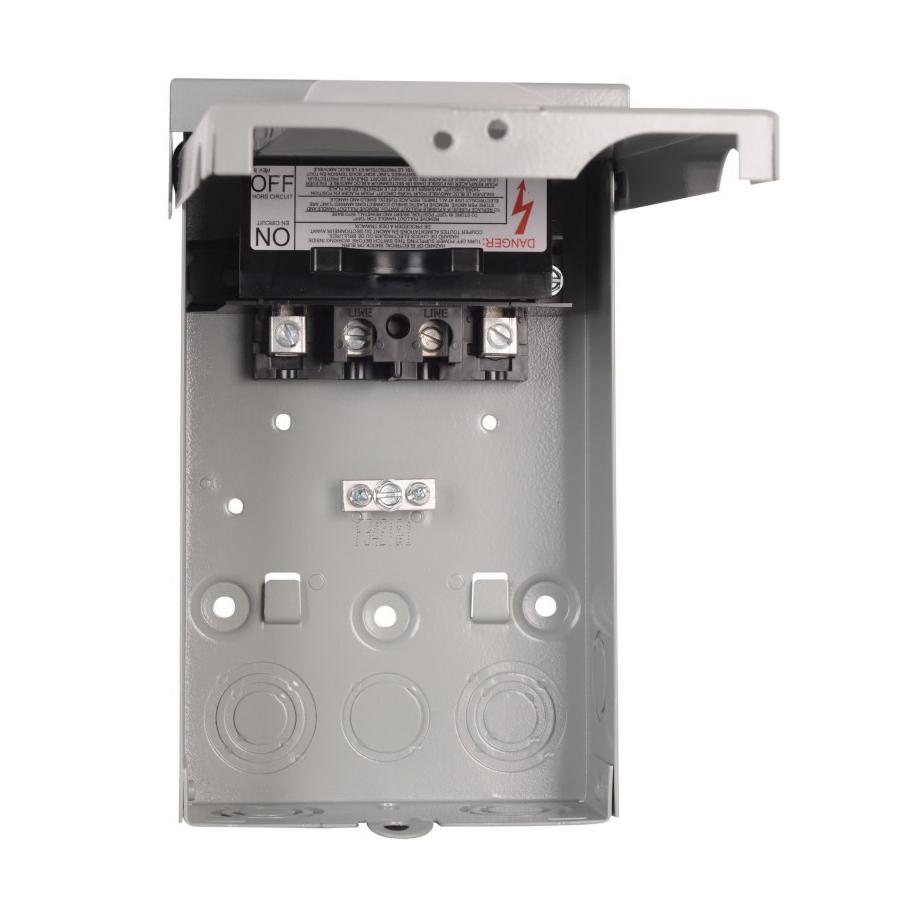

- Easy to remove high-strength protective shield for easier wiring and mounting
- Easy to remove front cover (no screws or fasteners to remove)
- 1 in knockouts on the bottom, back and side of unit
- Copper rated line and load lugs that are easily accessible
- Ample wiring space for mounting with a stud gun (single keyhole, two or three point mounting)
- Fused devices are service entrance rated
- Horsepower rated (10 hp maximum at 240 VAC)
- Padlockable door provision for safety and reduction of tampering
- Metallic enclosures are bottom entry and exit only
