| Amperage Rating | : | 7.5 A |
| BTU Rating | : | 120000 Btu/hr |
| CFM Rating | : | 3000 cfm |
| Coil Rating | : | 15 FPI |
| Connection Type | : | Brazed, Sweat |
| Domestic/Import | : | Import |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 2-2/5 hp |
| Material | : | Aluminum/Copper/Steel |
| Model | : | FHX |
| Overall Height | : | 56.06 in |
| Overall Length | : | 28.18 in |
| Overall Width | : | 49 in |
| Phase | : | 3 ph |
| Power Rating | : | 1.76 kW |
| Sound Level | : | 92 dBA |
| Tonnage | : | 10 ton |
| Voltage Rating | : | 208/230 V |
The FHX/FHS Series units with direct expansion coils are the best choice for packaged heat pump air handlers. FHX units come with X-Vane Fan Technology. All models offer excellent fan performance, a unique combination of indoor air quality features, and easy installation. Their versatility and state-of-the-art features will provide economical performance. Easy-to-install and economical FHX/FHS units provide reliable service.

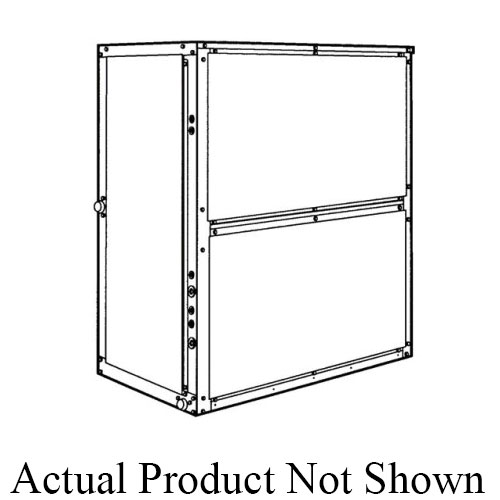

HEIL® Fan Coil Unit, Model: FHX, 208/230 V, 7.5 A, 1.76 kW, 2-2/5 hp, 60 Hz, 3-Phase, 120000 Btu/hr, 3000 cfm, Brazed, Sweat Connection, 15 A Fuse Rating, 15 FPI Coil, Tonnage: 10 ton, 92 dBA Sound Level, Aluminum/Copper/Steel, Finish: Galvanized, 28.18 in Overall Length, 49 in Overall Width, 56.06 in Overall Height, Domestic/Import: Import
- The unique combination of features in the FHX/FHS Series air handlers ensures that clean, fresh, conditioned air is delivered to the occupied space
- Cooling coils prevent the build-up of humidity in the room, even during part-load conditions
- 2 in. (51 mm) disposable filters remove dust and airborne particles from the occupied space
- The FHX/FHS Series packaged air handlers have low initial costs, and they continue to save money by providing reduced installation expense and energy-efficient performance
- Quick installation is ensured by the multi-position design
- Units can be installed in either the horizontal or vertical (upflow) configuration without modifications
- All units have drain-pan connections on both sides, and pans can be pitched for right-hand or left hand operation with a simple adjustment
- Die-formed galvanized steel panels ensure structural integrity under all operating conditions
- Mechanically bonded coil fins provide improved heat transfer
- Model FHX/FHS air handling units have galvanized steel casings; inlet and outlet connections are on the same end
- Direct expansion (DX) coils are designed for use with R-410A refrigerant and have copper tubes mechanically bonded to aluminum sine-wave fins
- Direct-expansion coils include matched, factory-installed thermostatic expansion valves (TXVs) with matching distributor nozzles
- Our 2-Speed Indoor Fan Motor system units will automatically adjust the indoor fan motor speed in sequence with the unit's cooling operation
- Per ASHRAE 90.1 2010 standard section 6.4.3.10.b, during the first stage of cooling operation the fan motor (either ECM or controlled by VFD) will adjust to provide two-thirds of the total cfm established for the unit
