| Amperage Rating | : | 1.08 A Full Load |
| Bearing Type | : | Sleeve |
| Frame Size | : | 42 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| Mounting Type | : | Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | CW |
| Shaft Size | : | 1/2 in Dia x 2 in L |
| Speed Rating | : | 1075 rpm |
| Suitable For Use With | : | NAC218-260 Series Air Conditioners |
| Voltage Rating | : | 208/230 VAC |

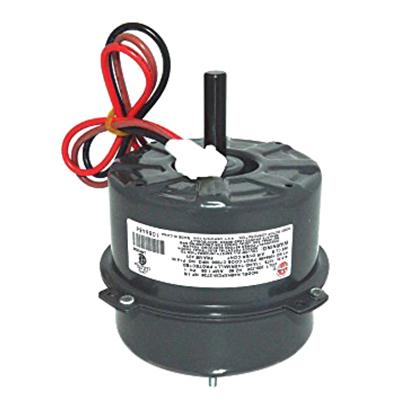

ICP™ Condenser Fan Motor, 208/230 VAC, 1.08 A Full Load, 1/5 hp, 1075 rpm, 1 ph Phase, 60 Hz, 42 Frame, 1/2 in Dia x 2 in L Shaft, CW Rotation, 1 Speed, Sleeve Bearing, Thru-Bolt Mounting, For Use With: NAC218-260 Series Air Conditioners
- Capacitor 3 uF at 370 VAC
- 14.5 oz/ ft starting torque
- Plug-type electrical connections
- 5 in L shell
