| Additional Information | : | Elastomeric Thermal Insulated |
| Color | : | Black |
| Domestic/Import | : | Domestic |
| Insulation Thickness | : | 1/2 in |
| Length | : | 50 ft |
| Liquid Line Size | : | 3/8 in |
| Material Standard | : | ASTM B280/B1003/E84/E96/G90 |
| Material | : | Copper |
| Suction Line Size | : | 7/8 in |
| Temperature Rating | : | -40 to 200 deg F |

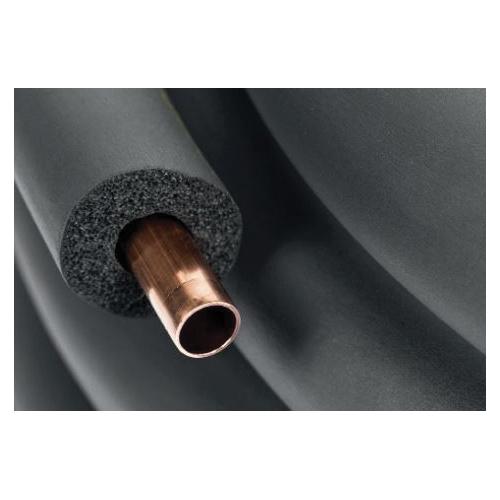

Line sets are copper tubing lines used to connect split systems air conditioners and heat pumps. Installation is quick, efficient and economical. Factory assembly of Line sets assures Quality & Consistency.
CAMBRIDGE-LEE Standard Lineset, 50 ft Length, 3/8 in Liquid Line, 7/8 in Suction Line, 1/2 in Insulation Thickness, Material Standard: ASTM B280/B1003/E84/E96/G90, Copper, Black, -40 to 200 deg F, Domestic, Additional Information: Elastomeric Thermal Insulated
- Line sets and Mini-Splits are produced in accordance with ASTM B280 & ASTM B1003
- Flame Spread Index is rated at 25/50 Plenum rated to ASTM E84, UL723, NFPA 255
- Thermally effective from -40 degrees Fahrenheit to 200 degrees Fahrenheit
- Tough, Flexible Weather Resistant outer layer (ASTM G90) makes installation quick, efficient and economical
- Water vapor permeability per ASTM E96
- Standard line sets available with plain end or 90 degree bends
- Mini-split line sets available with plain ends or double flared ends
- Submittals available upon request
